Send LiteLLM traces and metrics to Grafana Cloud over OTLP, and scrape the proxy's operational Prometheus metrics alongside them. Everything here uses LiteLLM's built-in OpenTelemetry and Prometheus support; there is nothing to install on the Grafana side beyond a token

Grafana Cloud accepts OTLP directly, so a single endpoint carries both traces and GenAI metrics and no collector or Alloy agent is required. Reach for the Prometheus path when you also want the operational litellm_* metrics, which are exposed for scraping rather than pushed over OTLP

Prerequisites

• A Grafana Cloud stack
• An access policy token with the traces:write and metrics:write scopes. Create one from Connections > Add new connection > OpenTelemetry (OTLP), or from Access Policies in your Grafana Cloud account
• Your stack's OTLP endpoint and instance ID, shown on that same page. The endpoint looks like https://otlp-gateway-prod-us-west-0.grafana.net/otlp; the region in it varies per stack

Send traces and metrics over OTLP

Grafana Cloud authenticates OTLP with HTTP Basic auth, where the username is your stack's numeric instance ID and the password is the access policy token. Build the credential once:

echo -n "<instance-id>:<access-policy-token>" | base64

Then point LiteLLM at the gateway:

.env

LITELLM_OTEL_V2=true
LITELLM_OTEL_INTEGRATION_ENABLE_METRICS=true

OTEL_EXPORTER="otlp_http"
OTEL_ENDPOINT="https://otlp-gateway-prod-us-west-0.grafana.net/otlp"
OTEL_HEADERS="Authorization=Basic%20<base64-from-above>"

config.yaml

litellm_settings:
  callbacks: ["otel"]

Start the proxy and send a request; traces land in Tempo and metrics in the hosted Prometheus, both queryable from Explore

Why Basic%20 and not Basic

OTEL_HEADERS follows the OTLP spec, which encodes header values in W3C Baggage format, so a space is written %20. Grafana Cloud's own setup screens hand you the value in exactly this form. LiteLLM decodes it before the header goes on the wire, so a literal space works too if you prefer to write one

Keep OTEL_EXPORTER="otlp_http". The gateway is an HTTP endpoint, and Grafana Cloud's own setup screens configure OTLP over HTTP

What Grafana renders

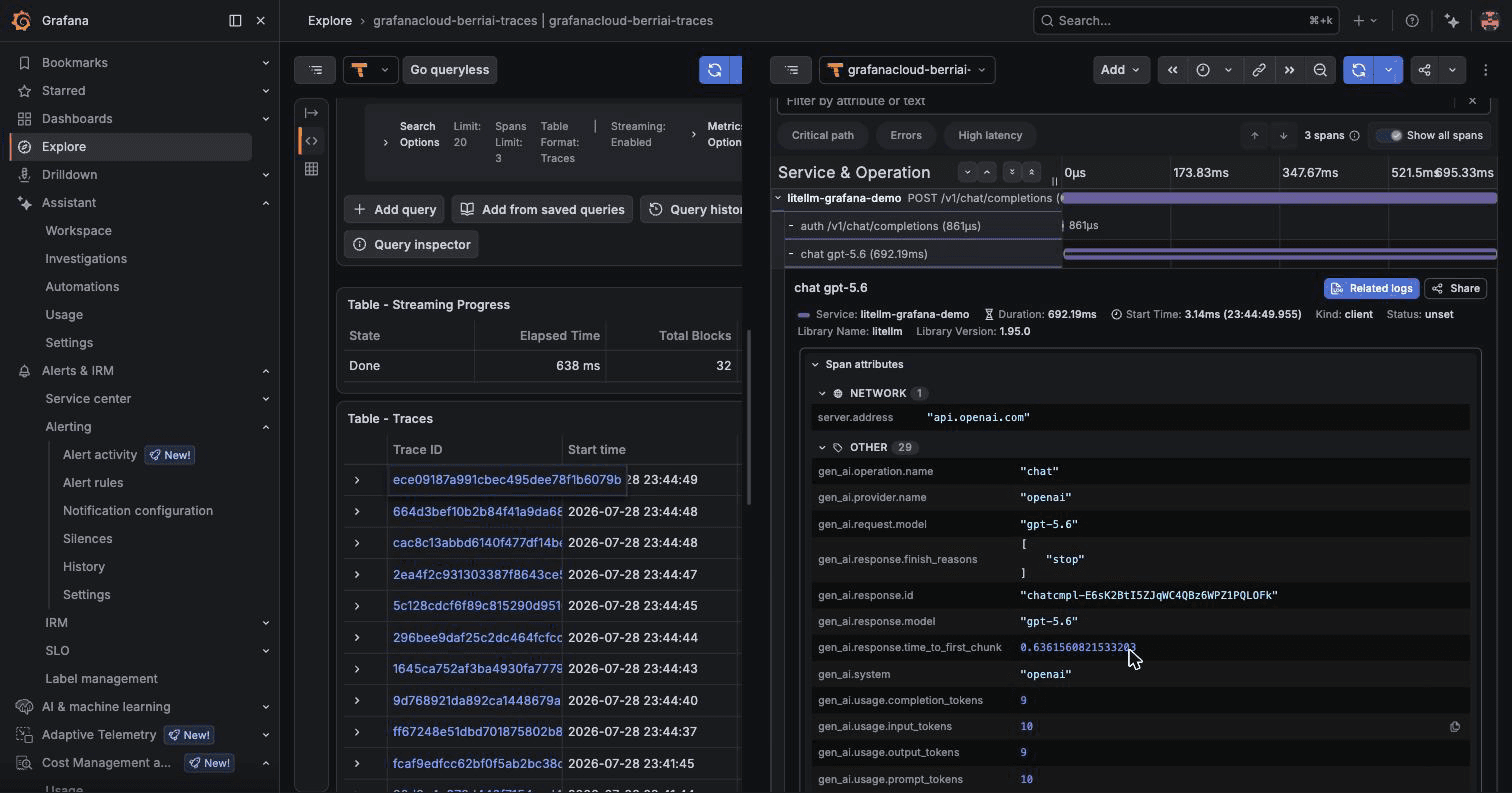

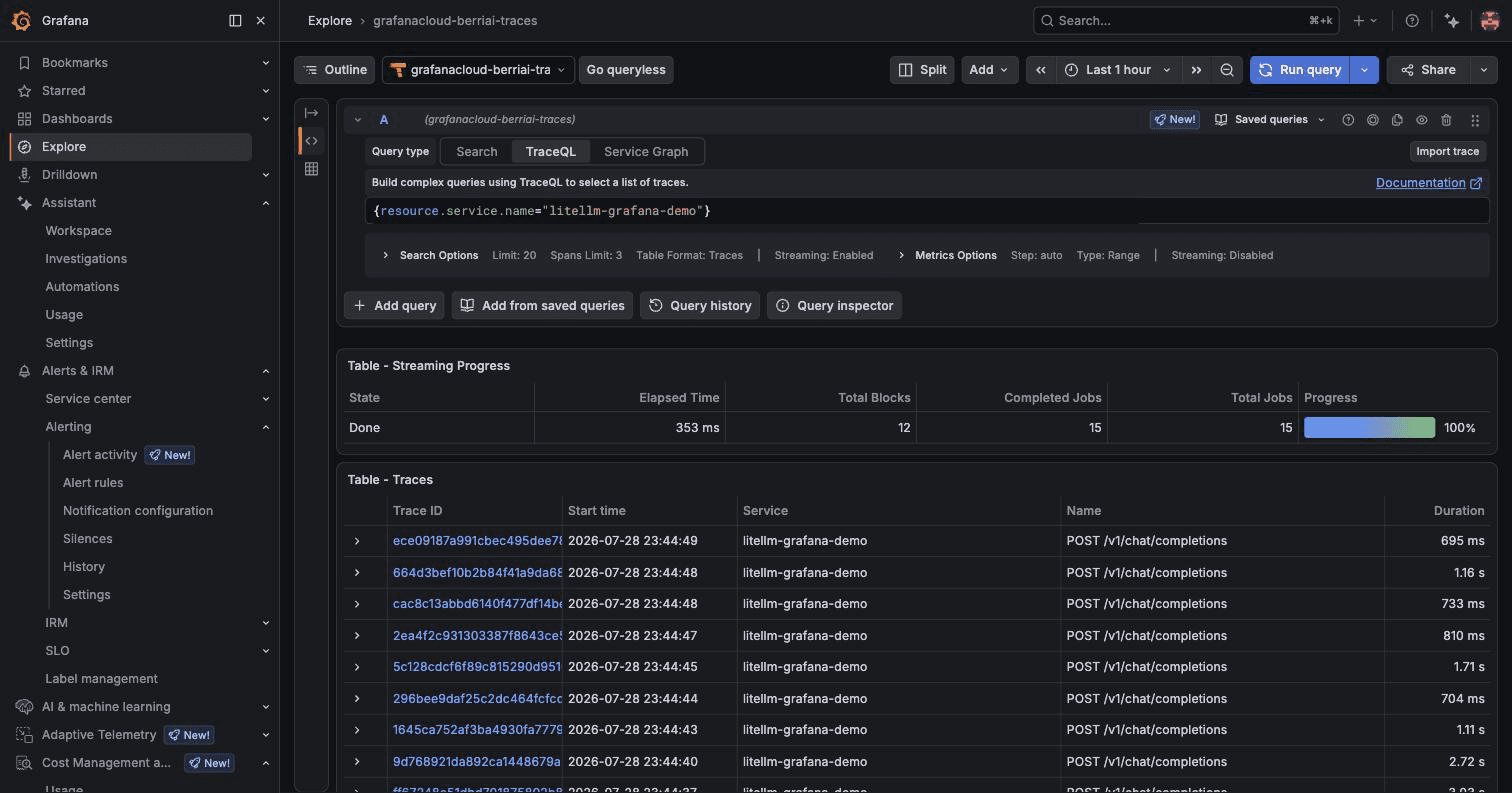

Traces arrive as standard OpenTelemetry GenAI spans, so Explore, with Tempo selected, shows a span per LLM call with model, provider, token counts, and latency, nested under the proxy's HTTP server span. LiteLLM stamps a service.name resource attribute, so the spans are also grouped by service wherever Grafana keys off it

Each request is one trace: the server span for the route, an auth span, and a chat <model> span carrying the GenAI attributes

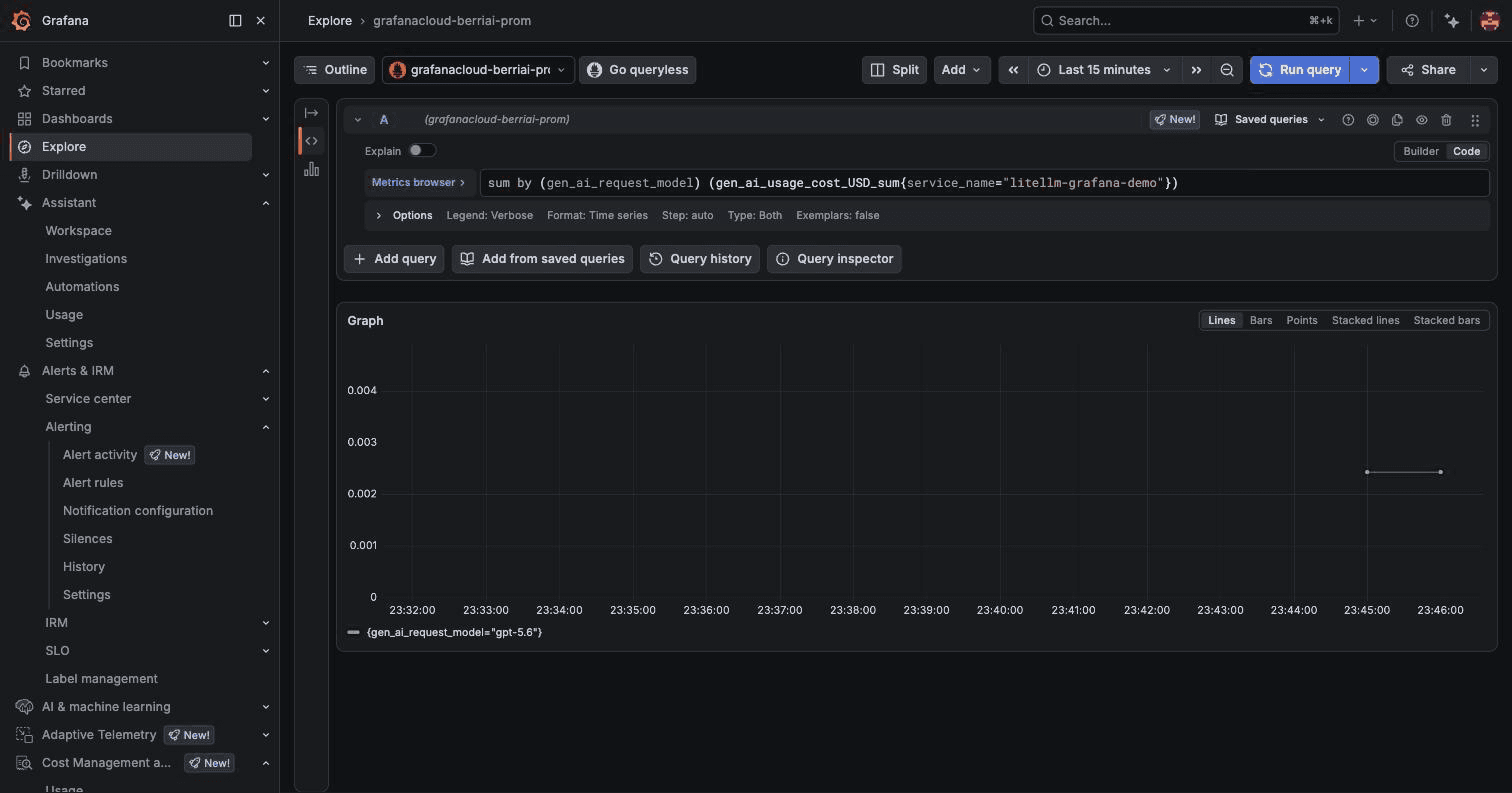

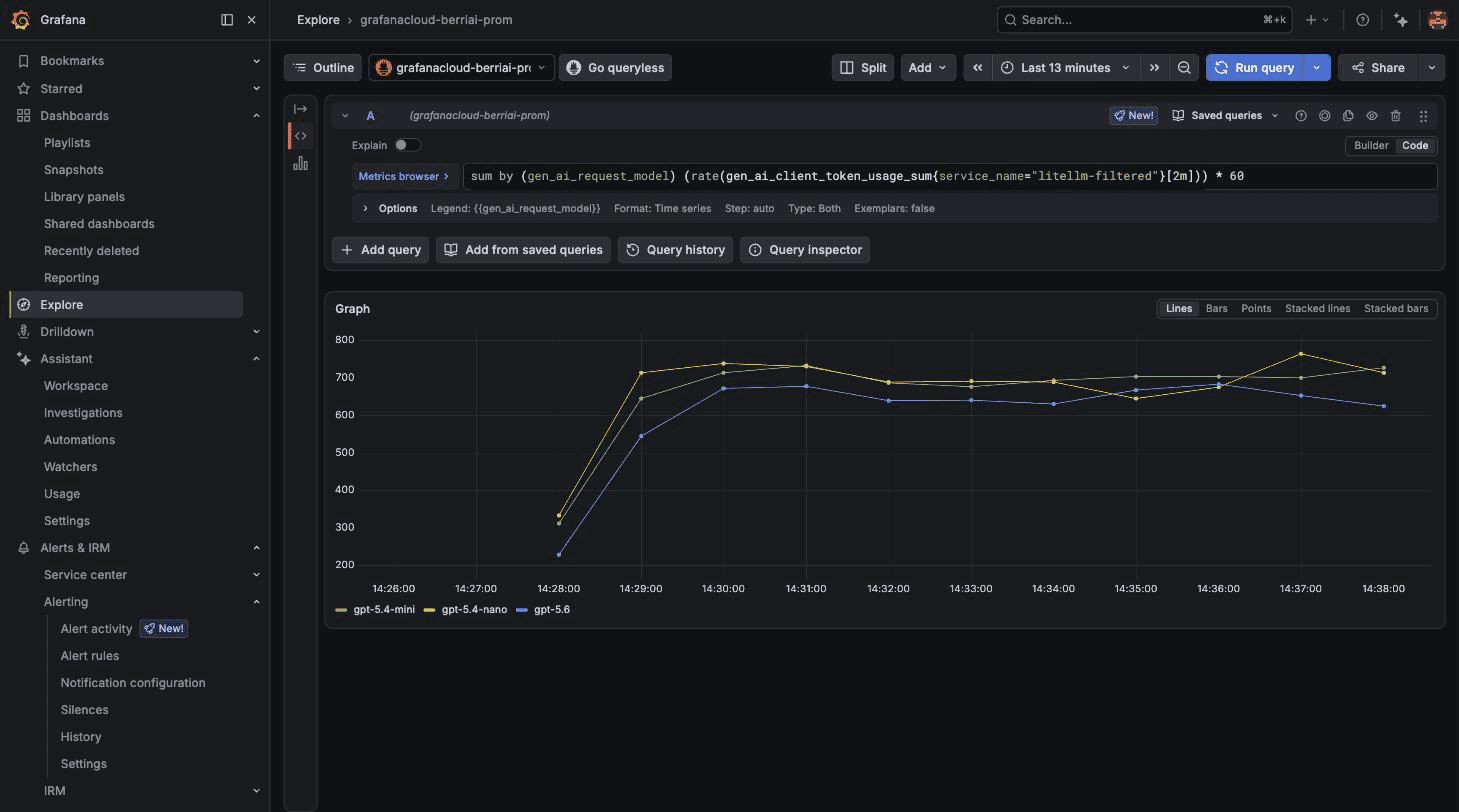

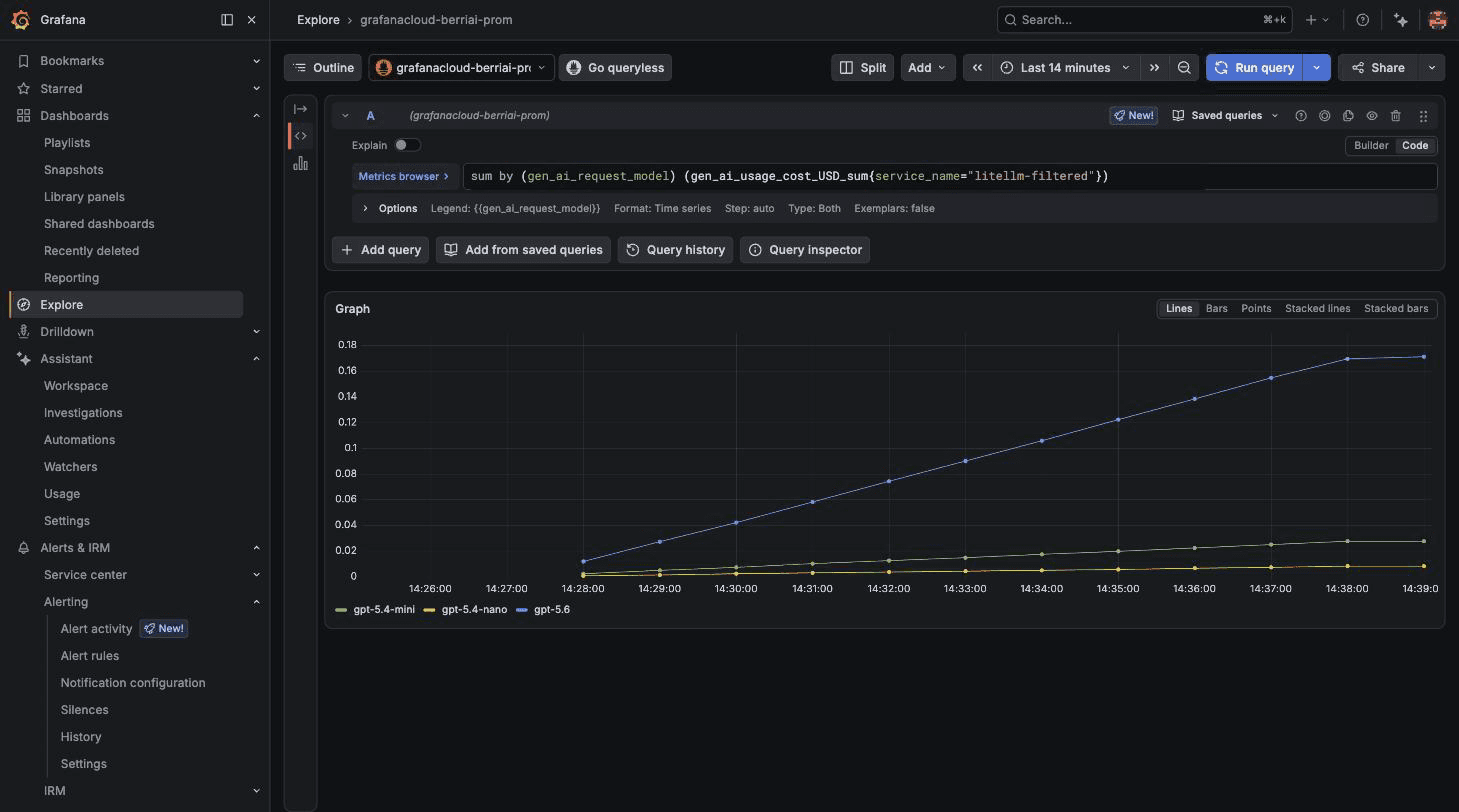

Metrics arrive as OTLP histograms and are queryable in Explore, with your hosted Prometheus selected, under their Prometheus-normalized names:

LiteLLM instrument	Queryable as
gen_ai.client.operation.duration	gen_ai_client_operation_duration_seconds_bucket
gen_ai.client.token.usage	gen_ai_client_token_usage_bucket
gen_ai.usage.cost	gen_ai_usage_cost_USD_sum
gen_ai.server.time_to_first_token	gen_ai_server_time_to_first_token_seconds_bucket

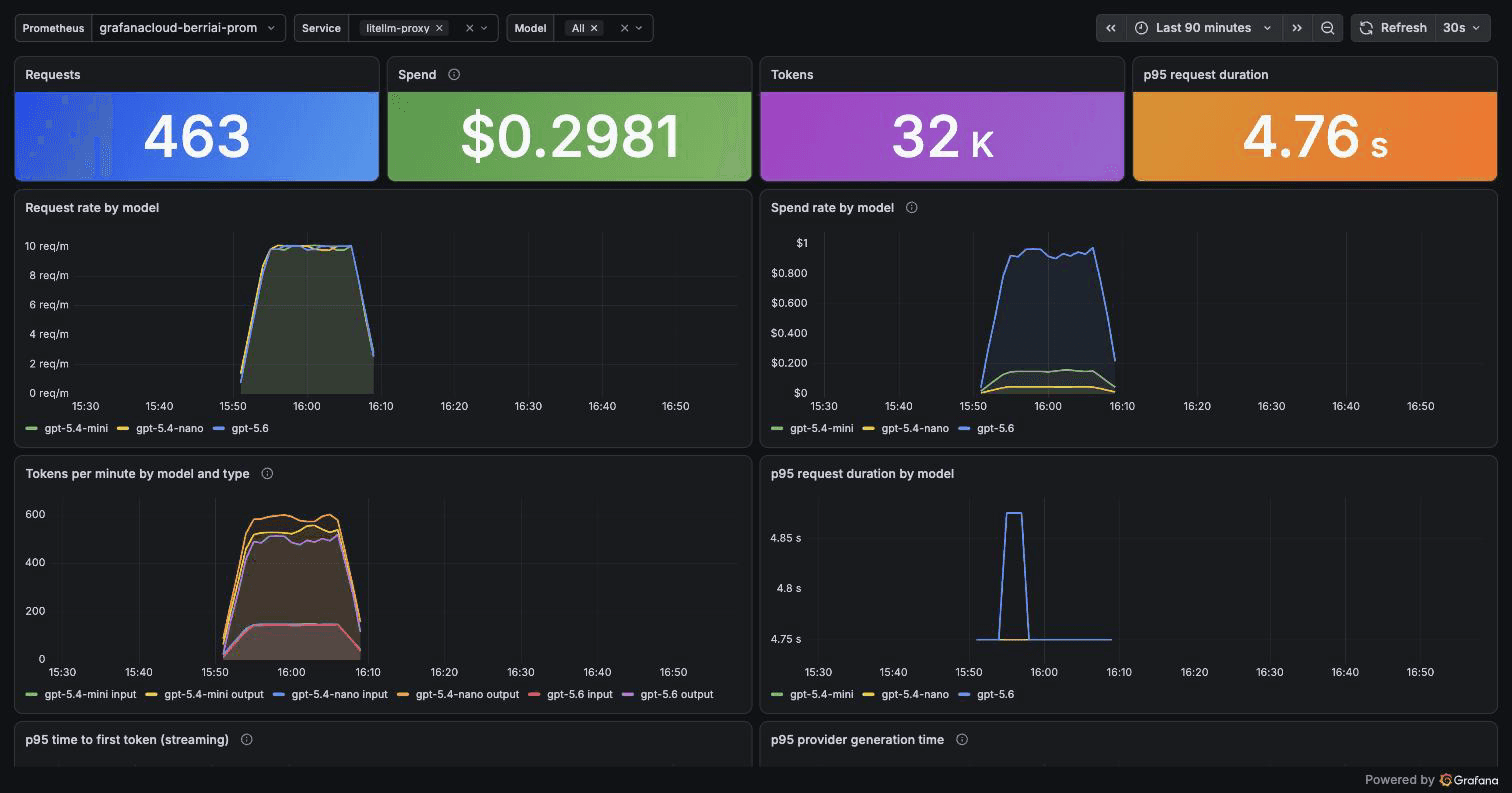

These four are the names Grafana Cloud's AI Observability integration dashboards query, so installing that integration from Connections > Add new connection > AI Observability points its cost, token, and latency panels at LiteLLM data without building them yourself.

The same integration's metric list also covers agent counters such as gen_ai_agent_invocations_total, plus separate VectorDB, MCP, and GPU dashboards. LiteLLM emits no counter instruments and no agent, vector-store, or GPU telemetry, so anything reading those has no LiteLLM data to draw on

Histogram temporality

LiteLLM exports histograms with cumulative aggregation temporality, which is what Grafana Cloud's OTLP gateway accepts. Older LiteLLM releases sent delta histograms, which the gateway rejects with invalid temporality and type combination; the symptom is Failed to export batch code: 400 in the proxy log and no GenAI metrics in Grafana at all

Two further instruments, gen_ai.server.time_per_output_token and gen_ai.client.response.duration, are emitted but not read by the prebuilt dashboards. Chart them yourself when you want per-token generation speed

note

Cost, time-to-first-token, and time-per-output-token were previously emitted as gen_ai.client.token.cost, gen_ai.client.response.time_to_first_token, and gen_ai.client.response.time_per_output_token. The prebuilt dashboards do not match those names, and neither do the GenAI semantic conventions. If your panels are empty and Explore shows the older names, upgrade LiteLLM; if you hand-built panels against them, repoint those queries at the names in the table above

Send only traces

Metrics are opt-in. Drop LITELLM_OTEL_INTEGRATION_ENABLE_METRICS and the same endpoint carries traces alone

Prometheus metrics

The OTLP path covers per-request GenAI telemetry. LiteLLM's operational metrics, budgets, rate limits, deployment health, spend, and the rest documented in Prometheus metrics, live on the proxy's /metrics endpoint instead and reach Grafana Cloud by scraping

Point Grafana Alloy at the proxy and remote_write to your stack:

config.alloy

prometheus.scrape "litellm" {
  targets    = [{__address__ = "litellm-proxy:4000"}]
  bearer_token = "<litellm-api-key>"
  forward_to = [prometheus.remote_write.grafana_cloud.receiver]
}

prometheus.remote_write "grafana_cloud" {
  endpoint {
    url = "https://prometheus-prod-<region>.grafana.net/api/prom/push"
    basic_auth {
      username = "<instance-id>"
      password = "<access-policy-token>"
    }
  }
}

/metrics requires a LiteLLM API key by default, which is what bearer_token above supplies; set require_auth_for_metrics_endpoint: false under litellm_settings to expose it unauthenticated instead. Multi-worker deployments also need PROMETHEUS_MULTIPROC_DIR set, otherwise each worker reports only its own share

LiteLLM maintains Grafana dashboards for these metrics at cookbook/litellm_proxy_server/grafana_dashboard; import the JSON and point it at your hosted Prometheus data source

Control cardinality

Grafana Cloud bills on active series, and both telemetry paths default to attribute sets rich enough to multiply them. A per-request field such as a request ID creates one series per request, so this is worth setting before you send production volume, not after the first bill

For OTLP metrics, filter attributes with an allowlist or denylist under callback_settings.otel.attributes:

config.yaml

callback_settings:
  otel:
    attributes:
      include_list:
        - gen_ai.operation.name
        - gen_ai.system
        - gen_ai.request.model
        - gen_ai.framework
        - metadata.user_api_key_team_id

The filter applies to metrics only, so traces keep their full attribute set. See Control metric attribute cardinality for the full list and the denylist form

For Prometheus metrics, restrict labels per metric with include_labels:

config.yaml

litellm_settings:
  prometheus_metrics_config:
    - group: "core"
      metrics:
        - "litellm_proxy_total_requests_metric"
        - "litellm_spend_metric"
      include_labels:
        - "model"
        - "team"

Grafana Cloud's Cost Management > Cardinality page shows which metrics and labels dominate your series count once data is flowing, which is the fastest way to find what to trim

Troubleshooting

401 or 403 from the OTLP gateway. The base64 credential is instance-id:token, not the token alone, and the instance ID is the numeric stack ID rather than your stack name. Re-run the base64 command and confirm the token carries traces:write and metrics:write

Traces arrive but metrics do not. LITELLM_OTEL_INTEGRATION_ENABLE_METRICS=true is required in addition to LITELLM_OTEL_V2=true. Metrics also export on a 5 second period, so allow a moment after the first request. If the proxy log shows Failed to export batch code: 400 naming a temporality problem, see the note above

Nothing arrives at all. Confirm LITELLM_OTEL_V2=true is set; without it the v2 integration does not run. Set OTEL_EXPORTER="console" to check that LiteLLM is producing spans before blaming the network

Metrics land but the AI Observability dashboards are empty. Those dashboards query the metric names in the table above. Older LiteLLM releases emit cost and time-to-first-token under different names that will not match; check in Explore which names are actually arriving
