Guardrails on Pass-Through Endpoints

Overview

Property	Details
Description	Enable guardrail execution on LiteLLM pass-through endpoints with opt-in activation and automatic inheritance from org/team/key levels
Supported Guardrails	All LiteLLM guardrails (Bedrock, Aporia, Lakera, etc.)
Default Behavior	Guardrails are disabled on pass-through endpoints unless explicitly enabled

Quick Start

You can configure guardrails on pass-through endpoints either via the UI (recommended) or config file.

Using the UI

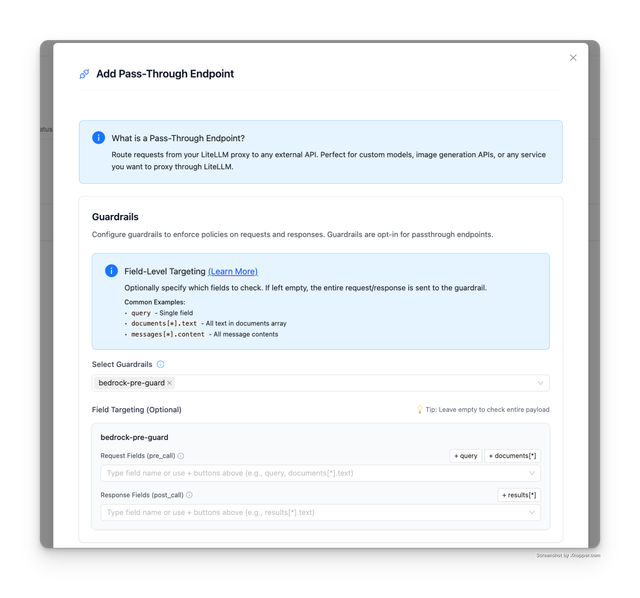

1. Navigate to Pass-Through Endpoints

Go to Models + Endpoints → Click + Add Pass-Through Endpoint

Scroll to the Guardrails section and select which guardrails to enforce.

Default Behavior

By default, you don't need to specify fields - LiteLLM will JSON dump the entire request/response payload and send it to the guardrail.

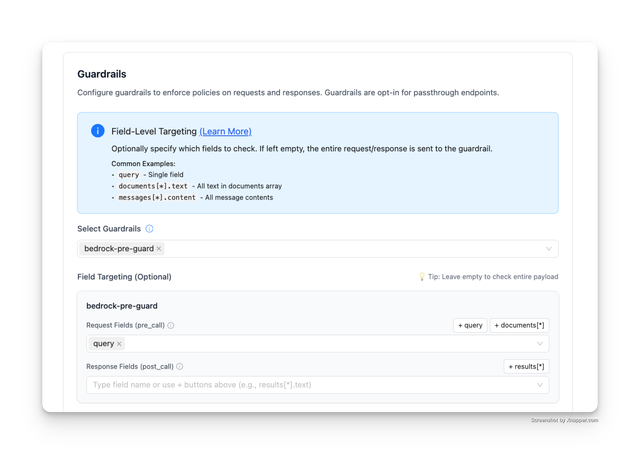

2. Target Specific Fields (Optional)

To check only specific fields instead of the entire payload:

1. Select your guardrails
2. In Field Targeting (Optional), specify fields for each guardrail
3. Use the quick-add buttons (+ query, + documents[*]) or type custom JSONPath expressions
4. Request Fields (pre_call): Fields to check before sending to target API
5. Response Fields (post_call): Fields to check in the response from target API

Example: In the screenshot above, we set query as a request field, so only the query field is sent to the guardrail instead of the entire request.

---

Using Config File

1. Define guardrails and pass-through endpoint

config.yaml

guardrails:
  - guardrail_name: "pii-guard"
    litellm_params:
      guardrail: bedrock
      mode: pre_call
      guardrailIdentifier: "your-guardrail-id"
      guardrailVersion: "1"

general_settings:
  pass_through_endpoints:
    - path: "/v1/rerank"
      target: "https://api.cohere.com/v1/rerank"
      headers:
        Authorization: "bearer os.environ/COHERE_API_KEY"
      guardrails:
        pii-guard:

2. Start proxy

litellm --config config.yaml

3. Test request

curl -X POST "http://localhost:4000/v1/rerank" \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer sk-1234" \
  -d '{
    "model": "rerank-english-v3.0",
    "query": "What is the capital of France?",
    "documents": ["Paris is the capital of France."]
  }'

---

Opt-In Behavior

Configuration	Behavior
guardrails not set	No guardrails execute (default)
guardrails set	All org/team/key + pass-through guardrails execute

When guardrails are enabled, the system collects and executes:

• Org-level guardrails
• Team-level guardrails
• Key-level guardrails
• Pass-through specific guardrails

---

How It Works

The diagram below shows what happens when a client makes a request to /special/rerank - a pass-through endpoint configured with guardrails in your config.yaml.

When guardrails are configured on a pass-through endpoint:

1. Pre-call guardrails run on the request before forwarding to the target API
2. If request_fields is specified (e.g., ["query"]), only those fields are sent to the guardrail. Otherwise, the entire request payload is evaluated.
3. The request is forwarded to the target API only if guardrails pass
4. Post-call guardrails run on the response from the target API
5. If response_fields is specified (e.g., ["results[*].text"]), only those fields are evaluated. Otherwise, the entire response is checked.

info

If the guardrails block is omitted or empty in your pass-through endpoint config, the request skips the guardrail flow entirely and goes directly to the target API.

---

Field-Level Targeting

Target specific JSON fields instead of the entire request/response payload.

config.yaml

guardrails:
  - guardrail_name: "pii-detection"
    litellm_params:
      guardrail: bedrock
      mode: pre_call
      guardrailIdentifier: "pii-guard-id"
      guardrailVersion: "1"

  - guardrail_name: "content-moderation"
    litellm_params:
      guardrail: bedrock
      mode: post_call
      guardrailIdentifier: "content-guard-id"
      guardrailVersion: "1"

general_settings:
  pass_through_endpoints:
    - path: "/v1/rerank"
      target: "https://api.cohere.com/v1/rerank"
      headers:
        Authorization: "bearer os.environ/COHERE_API_KEY"
      guardrails:
        pii-detection:
          request_fields: ["query", "documents[*].text"]
        content-moderation:
          response_fields: ["results[*].text"]

Field Options

Field	Description
request_fields	JSONPath expressions for input (pre_call)
response_fields	JSONPath expressions for output (post_call)
Neither specified	Guardrail runs on entire payload

JSONPath Examples

Expression	Matches
query	Single field named query
documents[*].text	All text fields in documents array
messages[*].content	All content fields in messages array

---

Configuration Examples

Single guardrail on entire payload

config.yaml

guardrails:
  - guardrail_name: "pii-detection"
    litellm_params:
      guardrail: bedrock
      mode: pre_call
      guardrailIdentifier: "your-id"
      guardrailVersion: "1"

general_settings:
  pass_through_endpoints:
    - path: "/v1/rerank"
      target: "https://api.cohere.com/v1/rerank"
      guardrails:
        pii-detection:

Multiple guardrails with mixed settings

config.yaml

guardrails:
  - guardrail_name: "pii-detection"
    litellm_params:
      guardrail: bedrock
      mode: pre_call
      guardrailIdentifier: "pii-id"
      guardrailVersion: "1"

  - guardrail_name: "content-moderation"
    litellm_params:
      guardrail: bedrock
      mode: post_call
      guardrailIdentifier: "content-id"
      guardrailVersion: "1"

  - guardrail_name: "prompt-injection"
    litellm_params:
      guardrail: lakera
      mode: pre_call
      api_key: os.environ/LAKERA_API_KEY

general_settings:
  pass_through_endpoints:
    - path: "/v1/rerank"
      target: "https://api.cohere.com/v1/rerank"
      guardrails:
        pii-detection:
          request_fields: ["input", "query"]
        content-moderation:
        prompt-injection:
          request_fields: ["messages[*].content"]
