Microsoft Agent 365 Guardrail

Sends every MCP tool call to the Microsoft Agent 365 evaluation API before LiteLLM runs it. Microsoft Defender returns allow or block, and the call is recorded on the Microsoft side under the signed-in user

Supported modes

Mode	What it does
`pre_mcp_call`	Evaluates the tool name, arguments and server with Defender before execution. Blocks on a block verdict

The guardrail only runs on MCP tool calls. Chat completions and other LLM routes are untouched

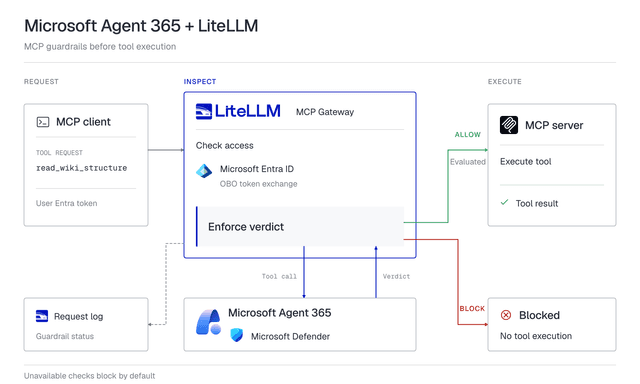

How it works

Agent 365 evaluates in the context of a signed-in user, so every guarded tool call needs that user's Entra access token, audienced to your gateway app registration, in the Authorization header. The guardrail exchanges it On-Behalf-Of (OBO) for a delegated Agent 365 token and evaluates as that user. There is no service or agent identity mode: a call without a user token gets HTTP 401

The LiteLLM key travels separately in x-litellm-api-key. On a proxy that already accepts Entra tokens through JWT auth, the Entra token is the LiteLLM credential too

Per tool call

LiteLLM admission: key or JWT check, then the key's MCP server and tool permissions. A bad credential fails here with the usual 401 or 403
The guardrail reads the Entra token from Authorization. Missing: HTTP 401. On the per-server /mcp route the 401 carries a sign-in challenge, see Browser sign-in
OBO exchange, cached for the token's lifetime
The pending call goes to Agent 365: tool name, arguments, server name, conversationId, and the tool's description and input schema when the server published them. The user's prompt is never sent
Allow with defender.status: Evaluated: LiteLLM runs the tool. Block: HTTP 400 with the Defender message and correlation id, and the MCP server is never contacted. Allowed but not evaluated (Skipped, FailedOpen): treated as unscanned, unreachable_fallback decides

The guardrail can only be attached to MCP servers whose Authorization header stays with the gateway: auth_type none, api_key, bearer_token, basic, authorization, token, aws_sigv4 (with no Authorization entry in extra_headers) and oauth2_token_exchange, where the same Entra token is what LiteLLM exchanges for the upstream. On oauth2, oauth2_id_jag, oauth_delegate and true_passthrough servers that header already carries an upstream or gateway OAuth token, so the guardrail never sees a user token and refuses every call with 401. Leave it off those servers or move them to oauth2_token_exchange. Forwarding a client key header such as x-api-key under extra_headers is fine, it travels in its own header

Prerequisites

One-time Entra setup by a tenant administrator

Ask your Microsoft Agent 365 contact to onboard your tenant. Until then the evaluation endpoint answers 409 BAPForbiddenTenantAccess
Register a gateway app under Microsoft Entra ID > App registrations, single tenant, no redirect URI. Record the client id and tenant id, and create a client secret under Certificates & secrets. These are the guardrail's client_id, tenant_id and client_secret
Under Expose an API, set the Application ID URI to api://<client_id> and add a scope named access_as_user. This is the scope your MCP clients request
Still under Expose an API, pre-authorize the client id of each application your users call from. For terminal testing, pre-authorize the Azure CLI (Microsoft's public app id 04b07795-8ddb-461a-bbee-02f9e1bf7b46)
Under API permissions > Add a permission > APIs my organization uses, add the Agent Tools API (Microsoft's public app id ea9ffc3e-8a23-4a7d-836d-234d7c7565c1), delegated permission ThreatProtection.Evaluate.All, and grant admin consent. It must be delegated, not application: an application permission mints a token Agent 365 rejects

Check the setup before touching LiteLLM

az login --tenant <tenant_id>
az account get-access-token --tenant <tenant_id> --resource api://<gateway_client_id>

Decode the token and check aud is api://<gateway_client_id> and scp contains access_as_user. That is the token your MCP client sends

Quick Start

1. Define the guardrail in `config.yaml`

model_list:
  - model_name: gpt-4o
    litellm_params:
      model: openai/gpt-4o
      api_key: os.environ/OPENAI_API_KEY

guardrails:
  - guardrail_name: agent365-mcp
    litellm_params:
      guardrail: agent_365
      mode: pre_mcp_call
      default_on: true
      tenant_id: os.environ/AGENT365_TENANT_ID
      client_id: os.environ/AGENT365_CLIENT_ID
      client_secret: os.environ/AGENT365_CLIENT_SECRET

mcp_servers:
  deepwiki:
    transport: "http"
    url: "https://mcp.deepwiki.com/mcp"

2. Start the proxy

export AGENT365_TENANT_ID="<your Entra tenant id>"
export AGENT365_CLIENT_ID="<gateway app client id>"
export AGENT365_CLIENT_SECRET="<gateway app client secret>"

litellm --config config.yaml

3. Call an MCP tool

TOKEN=$(az account get-access-token --tenant <tenant_id> --resource api://<gateway_client_id> --query accessToken -o tsv)
curl -X POST http://localhost:4000/mcp-rest/tools/call \
  -H "x-litellm-api-key: Bearer sk-1234" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "server_id": "<server_id from /mcp-rest/tools/list>",
    "name": "read_wiki_structure",
    "arguments": {"repoName": "BerriAI/litellm"}
  }'

An allowed call returns the tool result. A blocked one returns HTTP 400

{
  "error": "Blocked by Microsoft Defender",
  "message": "Invocation of 'ask_question' is blocked by Microsoft Threat Detection policies configured by your administrator.",
  "tool": "ask_question",
  "correlation_id": "<id to look the call up on the Microsoft side>"
}

Every evaluated call gets a row under Logs in the Admin UI (UI logs) with the guardrail name, latency and verdict. Blocked calls on the /mcp transport show as guardrail_intervened. Calls refused or blocked on /mcp-rest/tools/call have no Logs row yet (litellm#40555)

Caller scenarios

How the user token reaches the request

A. Applications on a proxy with Entra JWT auth

With enable_jwt_auth and Entra as the issuer (OIDC JWT auth), the application's Entra bearer is both the LiteLLM credential and the OBO subject. No x-litellm-api-key is needed. The token must be issued for the gateway app (aud api://<gateway_client_id>, scp with access_as_user); a token for Microsoft Graph or another API fails JWT admission

general_settings:
  master_key: os.environ/LITELLM_MASTER_KEY
  enable_jwt_auth: true
  litellm_jwtauth:
    user_id_jwt_field: oid
    user_email_jwt_field: email
    user_id_upsert: true
    team_id_default: entra-users

export JWT_PUBLIC_KEY_URL="https://login.microsoftonline.com/<tenant_id>/discovery/keys"
export JWT_AUDIENCE="api://<gateway_client_id>"
export JWT_ISSUER="https://sts.windows.net/<tenant_id>/"

team_id_default is the team whose MCP permissions JWT callers inherit. Use https://login.microsoftonline.com/<tenant_id>/v2.0 as the issuer if the app issues v2 tokens

B. MCP clients that sign the user in (Claude Code, VS Code, Cursor)

The user registers LiteLLM's per-server MCP URL with only the LiteLLM key. The first call gets a 401 with an RFC 9728 challenge, the client opens the Microsoft sign-in page, and from then on it attaches and refreshes the Entra token itself. Setup is under Browser sign-in; client-side mechanics are on MCP OAuth

C. Custom clients that mint the token themselves

A script with no MCP OAuth support gets a gateway-audience token with MSAL or the Azure CLI (pre-authorized in prerequisite step 4) and sends it next to the LiteLLM key, exactly as in the Quick Start. The client owns refresh; Entra access tokens live about an hour. The same headers work on the /mcp transport and in claude mcp add ... -H "Authorization: Bearer $TOKEN". The REST facade is documented on MCP REST API

D. LiteLLM key only

Admitted by LiteLLM, then refused by the guardrail with HTTP 401 and no tool execution

{"detail": {"error": "Agent 365 guardrail rejected the tool call", "message": "Tool call 'read_wiki_structure' was blocked because the caller did not present an Entra bearer token; the Agent 365 guardrail authorizes tool calls On-Behalf-Of the signed-in user.", "tool": "read_wiki_structure", "guardrail_name": "agent365-mcp", "guardrail_mode": "pre_mcp_call"}}

On the per-server /mcp route the same 401 carries the sign-in challenge, so a capable client starts scenario B. The refusal only applies to servers the guardrail covers; the key keeps working on unguarded servers and on every LLM route

Two layers of authorization

LiteLLM decides which keys, users and teams reach which servers and tools (MCP permission management). What the tool may do inside the upstream system is decided by the upstream from the credential LiteLLM presents. With a shared API key the upstream sees a service identity; to have it see the signed-in user, use auth_type: oauth2_token_exchange (MCP OBO auth) or per-user OAuth (MCP OAuth). The guardrail evaluates the call either way

Configuration parameters

Parameter	Required	Description
`tenant_id`	Yes	Entra tenant id. Falls back to `AGENT365_TENANT_ID`
`client_id`	Yes	Client id of the gateway app registration. Falls back to `AGENT365_CLIENT_ID`
`client_secret`	Yes	Client secret of that app. Also accepted as `api_key`. Falls back to `AGENT365_CLIENT_SECRET`
`api_base`	No	Agent 365 endpoint. Defaults to `https://agent365.svc.cloud.microsoft`. Falls back to `AGENT365_API_BASE`
`resource_app_id`	No	App id of the Agent 365 resource the OBO token is minted for. Defaults to the production resource. Falls back to `AGENT365_RESOURCE_APP_ID`
`agent_id`	No	Agent identity reported with every evaluation. Defaults to the caller's key alias
`timeout`	No	Seconds per token exchange and evaluation request. Defaults to 10
`unreachable_fallback`	No	`fail_closed` (default) blocks when Agent 365 or Entra is unreachable, when Entra rejects the gateway's own credentials, or when Defender did not evaluate. `fail_open` allows those calls unscanned. Caller-side failures always block

Failure behavior

Situation	Result
Defender blocks	HTTP 400 with the Defender message and correlation id. Always blocks
Agent 365 rejects the request (4xx other than 408/429)	HTTP 400. Always blocks
Allowed but Defender did not evaluate (`Skipped`, `FailedOpen`)	`fail_closed`: HTTP 503. `fail_open`: allowed, recorded as unscanned
No Entra token, or Entra rejects the caller's token (`invalid_grant`, expired, wrong audience, consent missing, malformed assertion)	HTTP 401 naming the guardrail. Always blocks. On the per-server `/mcp` route the response carries the `WWW-Authenticate` challenge so the client signs the user in
Entra rejects the gateway's credentials (`invalid_client`, `unauthorized_client`, `invalid_scope`, `invalid_resource`)	`fail_closed`: HTTP 503 naming the setting to check. `fail_open`: allowed, recorded as unscanned. Never a 401, so clients do not re-prompt
Agent 365 or Entra returns 408 or 429	HTTP 503, recorded as Throttled. Always blocks
Agent 365 or Entra unreachable, timeout or 5xx	`fail_closed`: HTTP 503. `fail_open`: allowed, recorded as unscanned

Conversation grouping

Agent 365 groups evaluations by conversationId. The guardrail sends the Mcp-Session-Id when the transport has one, so all calls in one MCP session land in one Defender conversation. Stateless calls (/mcp-rest/tools/call, or a streamable request without a session) use LiteLLM's request id for that call, the same id the Logs row shows

On the per-server routes /<server>/mcp and /mcp/<server>, a request without an Entra token is answered with HTTP 401 and WWW-Authenticate: Bearer resource_metadata="..." pointing at that server's RFC 9728 metadata, which names your tenant as the authorization server and lists the scope to request. Clients that implement MCP authorization (Claude Code, VS Code, Cursor) open the browser, sign the user in, cache and refresh the token, and retry. The x-litellm-api-key header keeps carrying the LiteLLM key. The aggregate /mcp route and the REST facade do not challenge, so register each guarded server by its own URL

The challenge appears when the server keeps Authorization with the gateway (see How it works) and an Agent 365 guardrail with default_on: true applies to the caller. A guardrail attached only to a key, team or policy still enforces on every call but does not challenge at connect time, because the anonymous metadata cannot tell which key's guardrail a client is about to use. An expired or wrong-audience token gets the same challenge, so the client signs in again. A key with no grant to the server gets the ordinary 403 first

The advertised scope is the server's scopes when set, otherwise api://<client_id>/access_as_user. Entra requires the scope to belong to the resource the client says it is calling, so for a public URL name the scope after it and add that URL as an Application ID URI on the gateway app with access_as_user under it

mcp_servers:
  deepwiki:
    transport: http
    url: https://mcp.deepwiki.com/mcp
    scopes:
      - https://litellm.example.com/deepwiki/mcp/access_as_user

Entra has no dynamic client registration, so the client needs a registered client id: add a Mobile and desktop applications platform (on the gateway app or a separate public client) with the loopback redirect the client uses, and pre-authorize it for the scope as in prerequisite step 4. Then register the server without an Authorization header

{
  "mcpServers": {
    "deepwiki": {
      "type": "http",
      "url": "https://litellm.example.com/deepwiki/mcp",
      "headers": {"x-litellm-api-key": "Bearer sk-1234"},
      "oauth": {"clientId": "<public client id>", "callbackPort": 51001}
    }
  }
}

On the first call Claude Code opens the browser, the user signs in, and the call proceeds. Keep the client's server URL, the Application ID URI and the scope on the same form: the metadata's resource equals the URL the client used and TypeScript SDK clients check that before signing in. To see the raw challenge

curl -i -X POST https://litellm.example.com/deepwiki/mcp \
  -H "x-litellm-api-key: Bearer sk-1234" \
  -H "Content-Type: application/json" -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"curl","version":"0"}}}'

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Bearer resource_metadata="https://litellm.example.com/.well-known/oauth-protected-resource/deepwiki/mcp", error="invalid_token", error_description="Missing or invalid subject token; authenticate with the IdP and retry"

curl -s https://litellm.example.com/.well-known/oauth-protected-resource/deepwiki/mcp

{
  "authorization_servers": ["https://login.microsoftonline.com/<tenant_id>/v2.0"],
  "resource": "https://litellm.example.com/deepwiki/mcp",
  "scopes_supported": ["https://litellm.example.com/deepwiki/mcp/access_as_user"]
}
